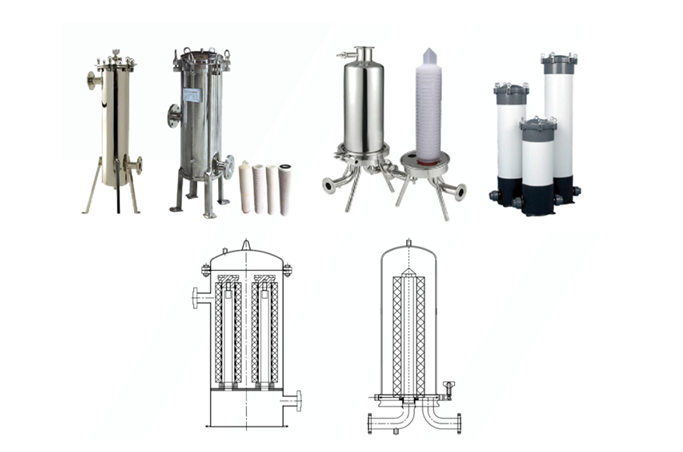

Cartridge Filter Housings
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Technical Specifications — Cartridge Housings
Comprehensive specification sheet for cartridge housings and cartridge fittings.
Sizes
| Quantity per Housing | 1 to 500 cartridges in a single housing |
|---|---|
| Cartridge Diameters | 2″, 2.5″, 4″, 6″ & 8″ (diameter) |
| Cartridge Lengths | 10″, 20″, 30″ & 40″ (length) |
Flow Rate
Flow rate is customizable based on customer requirements and cartridge selection.
Material of Construction
- Metals: SS316, LSS316, SS304, Mild Steel
- Plastics / Coatings: Polypropylene on any metal
- Linings / Coatings: Rubber lining on any metal; Teflon lining on any metal; Teflon coating on any metal
Type of Fitting (Cartridge)
- Double Open End (DOE) type
- Code 7 (226 O-Ring) design
- Code 3 (226 O-Ring) design
- NPT threaded connection type
End Connection
- NPT / BSP threaded
- Flanged Table E / Table F
- ANSI B16.5 flanged
- DIN standard
- Tri-Clover adaptors
Gasket / O-ring Materials
Available gasket and O-ring materials (select based on temperature, chemical compatibility, and application):
- Neoprene
- Nitrile (NBR)
- Silicone
- Viton (FKM)
- EPDM
- PTFE
- Spiral wound
- BUNA
